Forget what you have read about this monitor on the net. It uses a resolution of 1280 x 960, NOT 1280 x 1024.
Since it uses syncronization on the green cable instead of on 2 separate cables, an adapter is needed. I use the 0215-PCS PC Sync Adapter from Griffin Technology. It costs $30, and gives an excellent signal.
Spec: A1097C is a monosync monitor from Hewlett packard. It is not adjustable, but is made for one single mode only, which is 1280 x 960, at 72 Hz, a perfect 4:3 monitor. Sync on green.

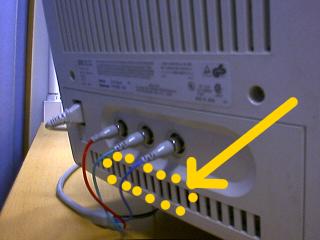

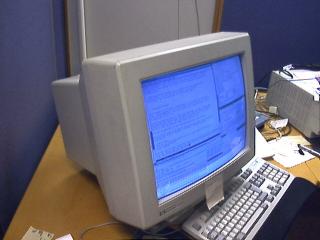

This is what it looks like. There are 3 BNC connectors on the back, so
synchronization has to be on the green wire. There are rumours that
there are variants with 5 connectors. (According to
Dusan Jankovic
it is possible to adjust this monitor for
lots of other resolutions by using a screwdriver on the hidden
controls, marked with yellow on the picture. There are markings on the
metal inside.)
# Modefile written by !MakeModes version 0.26 (14th December 1994)
file_format:1
monitor_title:hp A1097C
DPMS_state:1
# 1280 x 960 (72Hz)
startmode
mode_name:1280 x 960 (72)
x_res:1280
y_res:960
pixel_rate:122000
h_timings:144,160,0,1280,80,0
v_timings:3,60,0,960,0,0
sync_pol:0
endmode
# End
If you managed this on another card, please email me.
